시마루브는 전세계에 걸쳐 공급되어지고 있는
가스식 자동주입장치입니다.
| Bent connection 45° | |
| A | R1/4 |
| No. | 290.1001 |
| Bent connection 90° | |
| A | R1/4 |
| No. | 290.1002 |

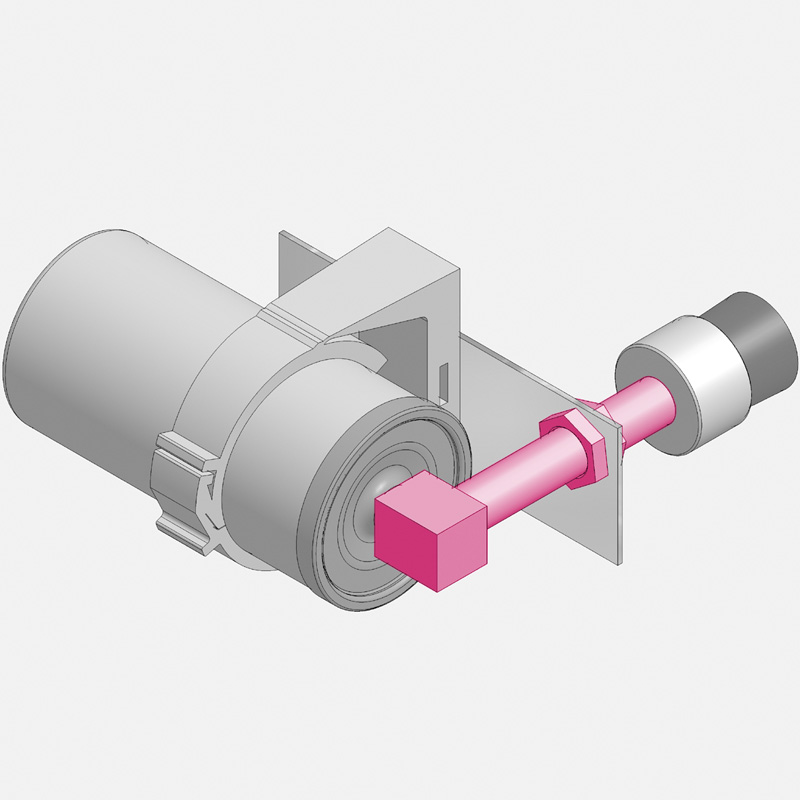

| 90° connection with thread and 2 nuts (only for oil) | |
| L | 70 |
| No. | 290.1005 |
| Connection straight | ||
| A | R3/8 | R1/2 |
| No. | 290.1010 | 290.1011 |
| Fitting nipple | |
| No. | 290.1015 |
| Reducing nipple | ||||||
| A | R1/8 | R1/4 | M6 | M8 | M8x1 | M10 |
| No. | 290.1020 | 290.1021 | 290.1022 | 290.1023 | 290.1024 | 290.1025 |
| A | M10x1 | M12 | M12x1,5 | UNF 1/4 |
| No. | 290.1026 | 290.1027 | 290.1028 | 290.1029 |
| Extension | ||||
| A | 10 | 35 | 50 | [mm] |
| No. | 290.1021 | 290.1040 | 290.1041 | |

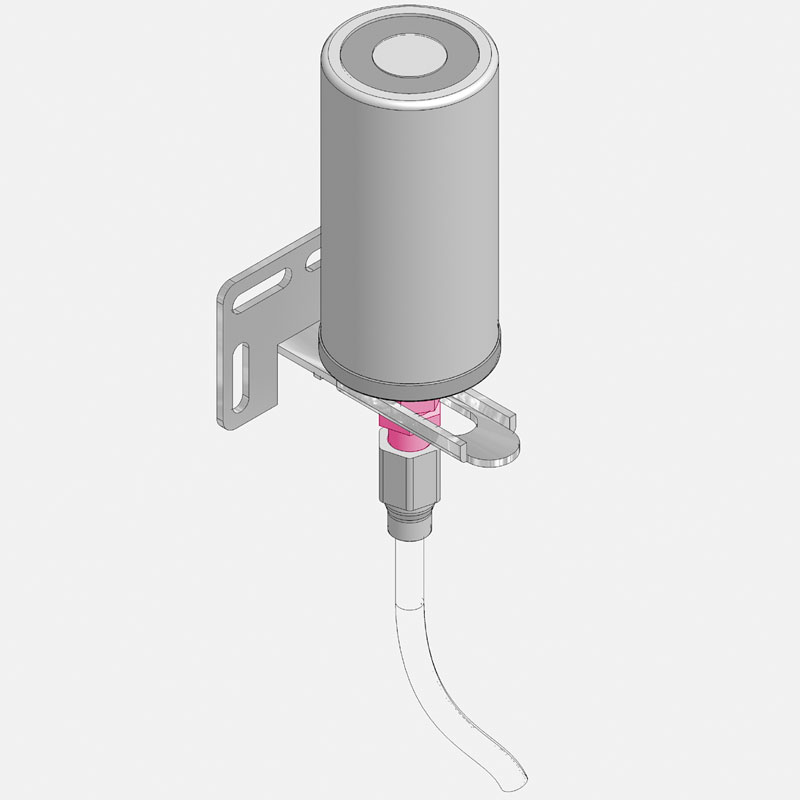

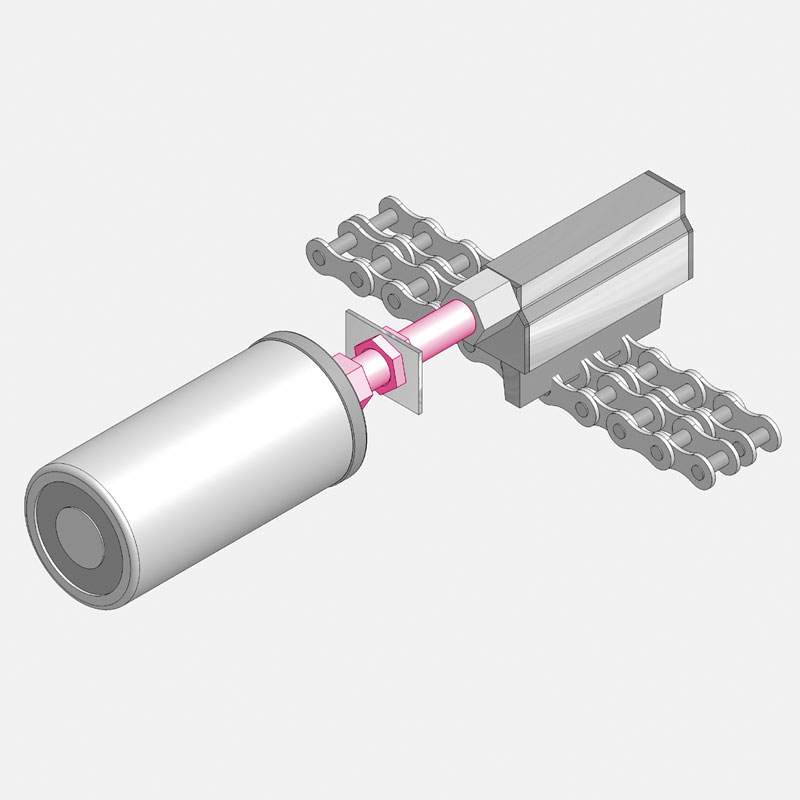

| Screwed connection (25 mm, 1 nut / 60 mm, 2 nuts) | ||
| A | 25 | 60 |
| No. | 290.1045 | 290.1046 |

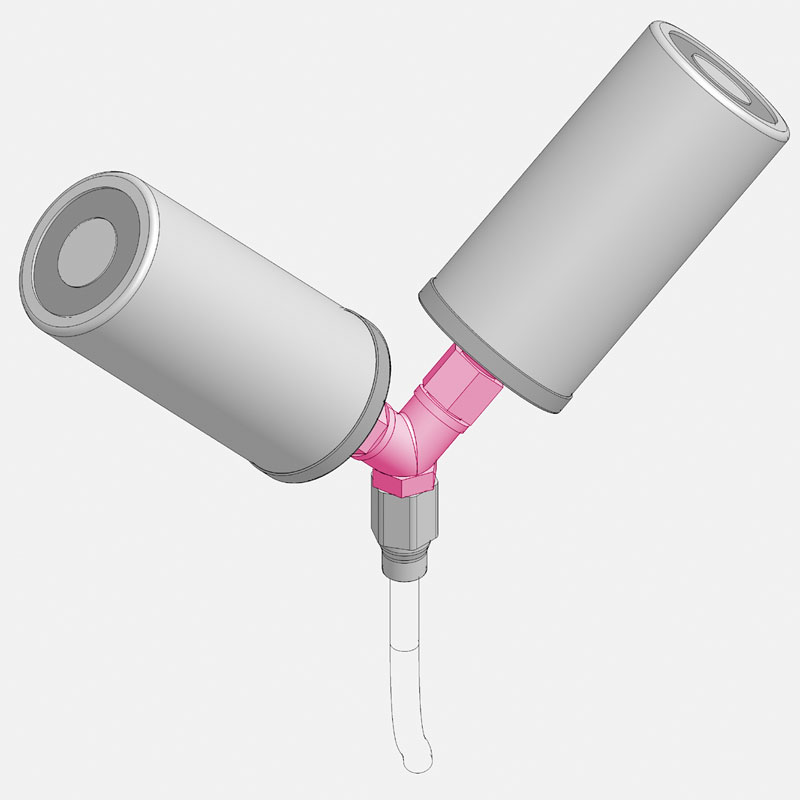

| Y-Manifold (contains reducing nipple 1021) | |
| A | R1/4 |
| No. | 290.1050 |

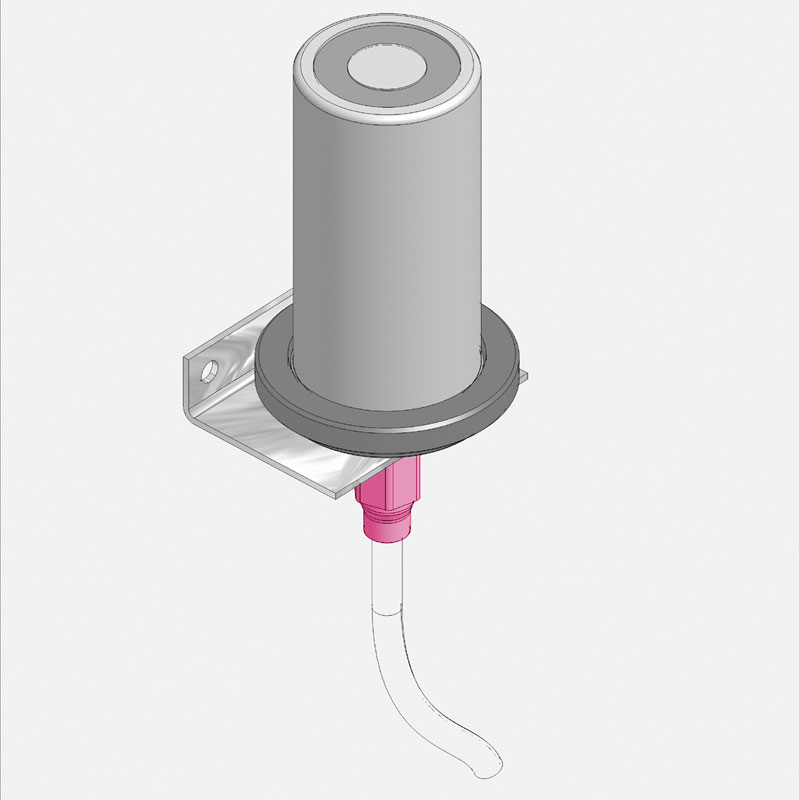

| Quick connection coupling (for hose d=8 mm) | |
| A | R1/4 |
| No. | 290.1060 |
| Quick connection coupling (for hose d=8 mm) | |||
| A | R1/8 | R1/4 | R3/8 |
| No. | 290.1070 | 290.1071 | 290.1072 |

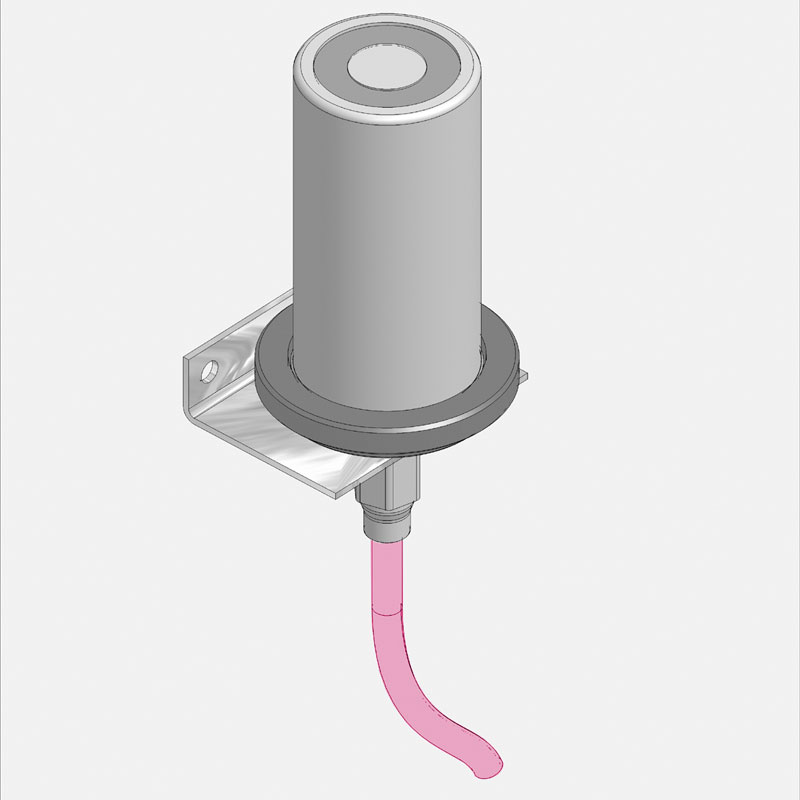

| Hose (recommended length to the lubrication point max 0.5 m) d=8/6 mm | |
| A | per meter |
| No. | 290.2000/...m |
| No. | 290.2002/...m (high temperature) |
| No. | 290.2004/...m (Hose for small bend radius) |

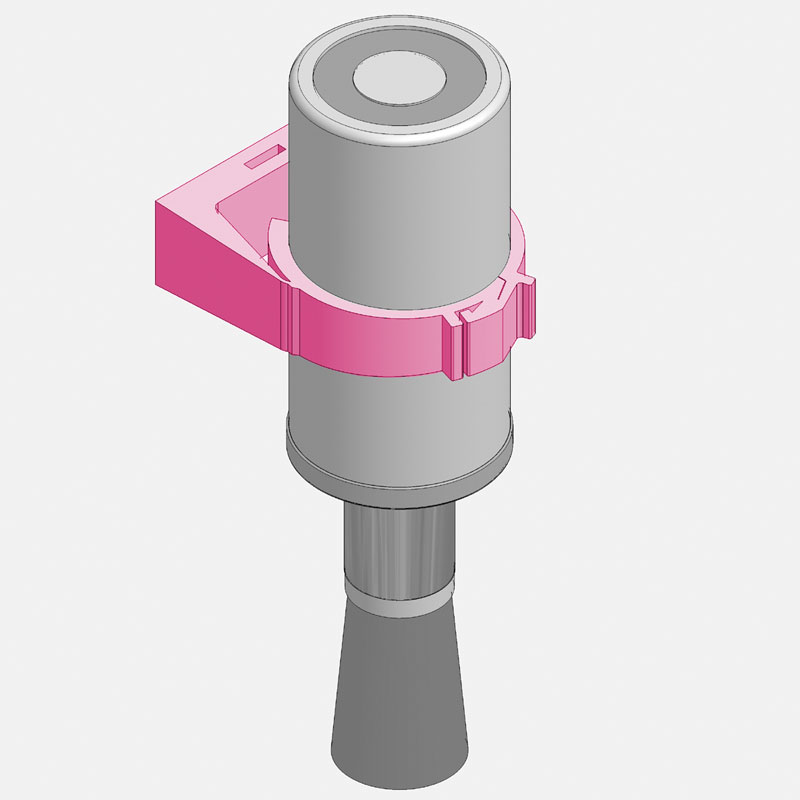

| Clamp for simalube | |
| A | 50 |
| No. | 290.2010 |
| Adapter for Perma clamp | ||
| A | 28 | [mm] |
| No. | 290.2012 | |
| Clamp for round brush | ||
| A | 28 | [mm] |
| No. | 290.2013 | |

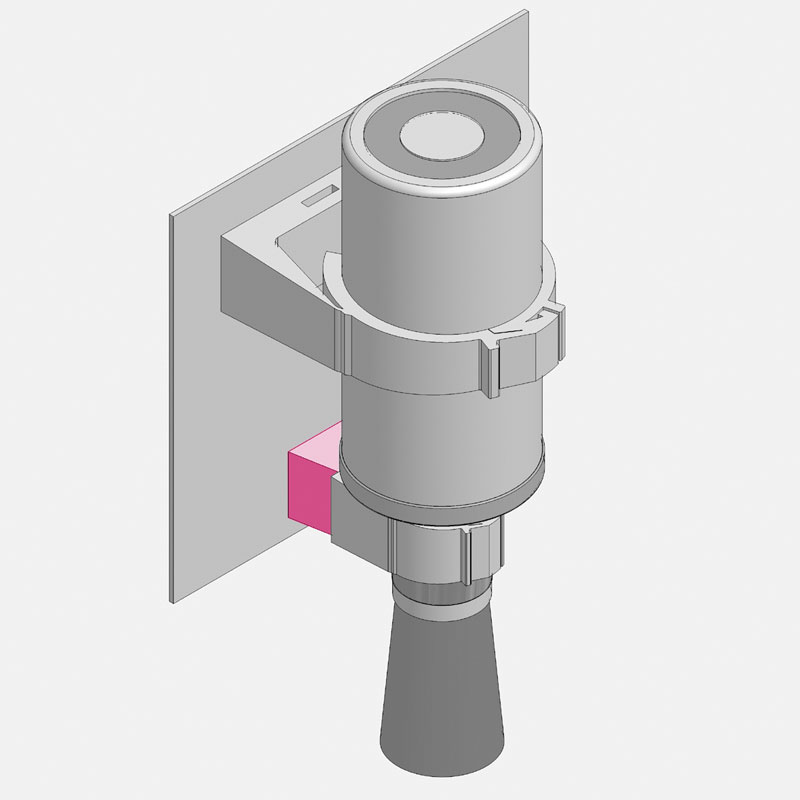

| Distance holder to clamp for round brush | |
| A | 15 |
| No. | 290.2014 |
| Non return valve (metal) | ||
| A | R1/8 | R1/4 |
| No. | 290.2020 | 290.2021 |

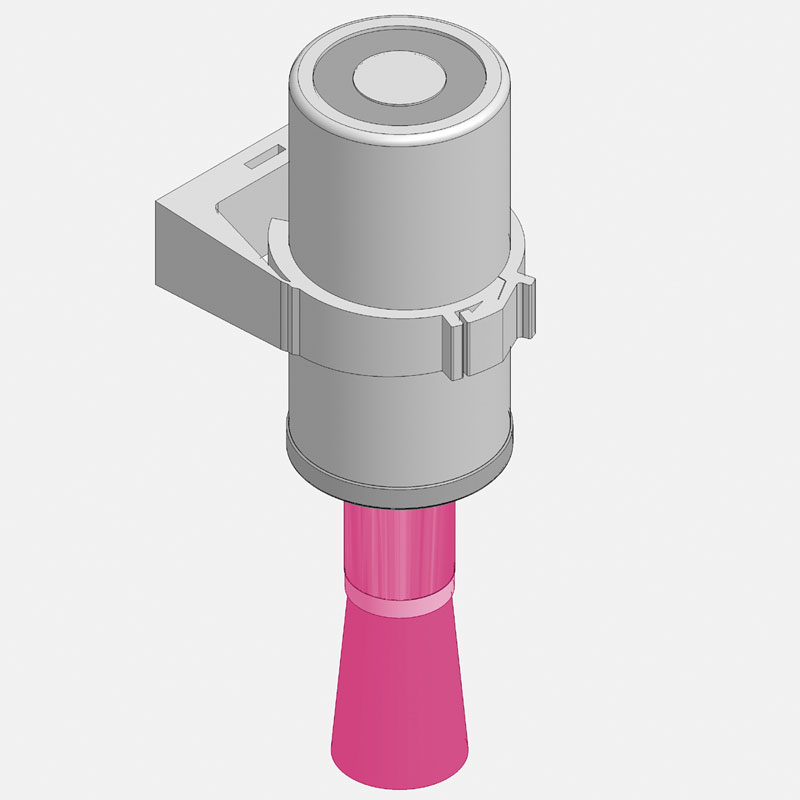

| Round brush | |
| Axl. | d=25x45 mm |
| No. | 290.2034 |

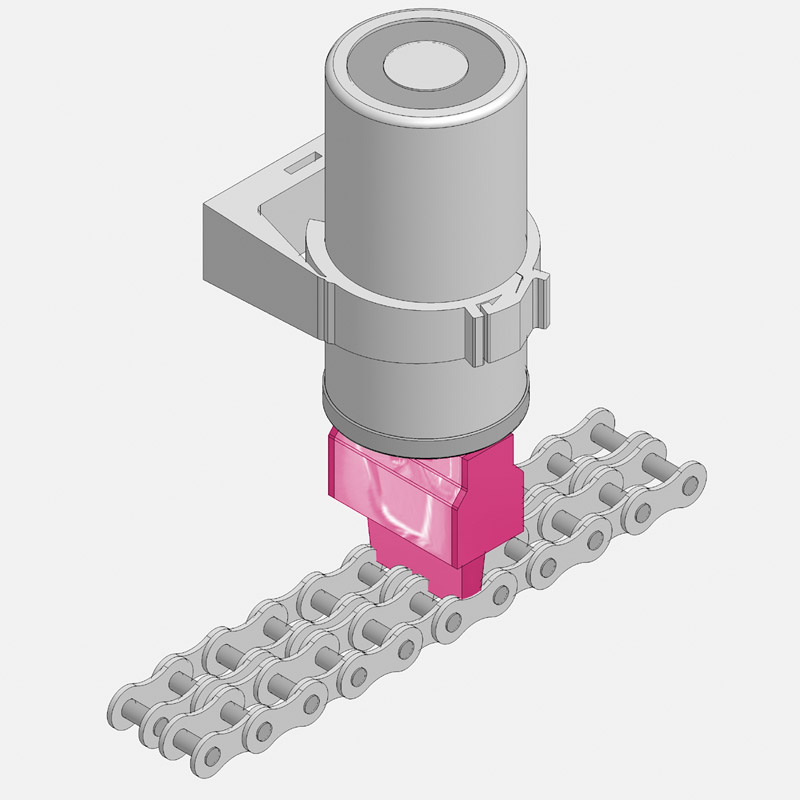

| Square brushes (FN for food) | ||||
| A | 25 | 40 | 70 | 100 |
| No. | 290.2038 | 290.2035 | 290.2036 | 290.2037 |
| No. | 290.2038-FN | 290.2035-FN | 290.2036-FN | 290.2037-FN |

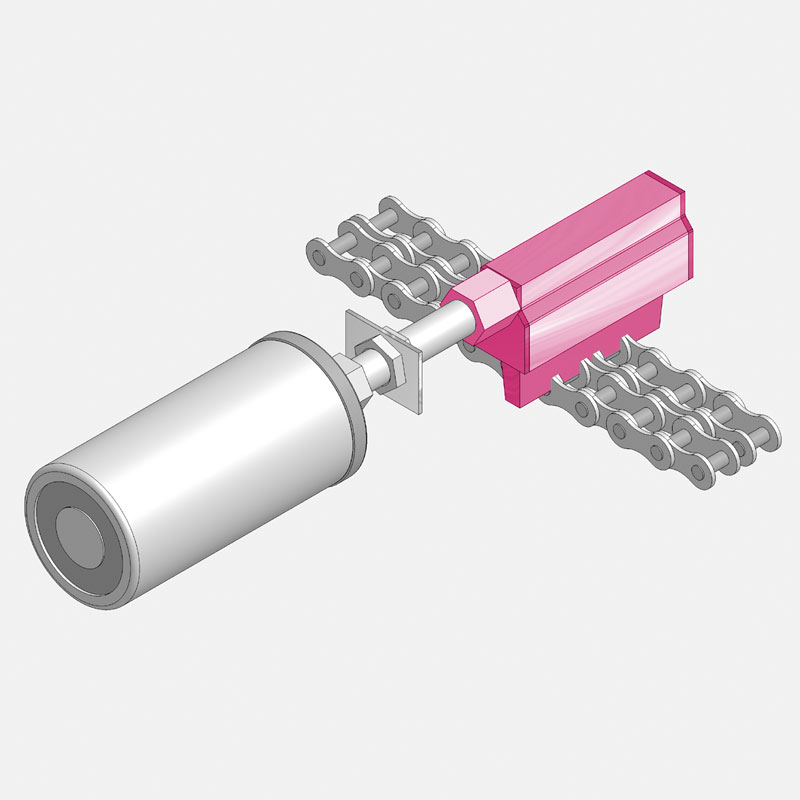

| Brush with lateral connection (FN for food) | |||
| A | 40 | 70 | 100 |
| No. | 290.2035-S | 290.2036-S | 290.2037-S |
| No. | 290.2035-SFN | 290.2036-SFN | 290.2037-SFN |

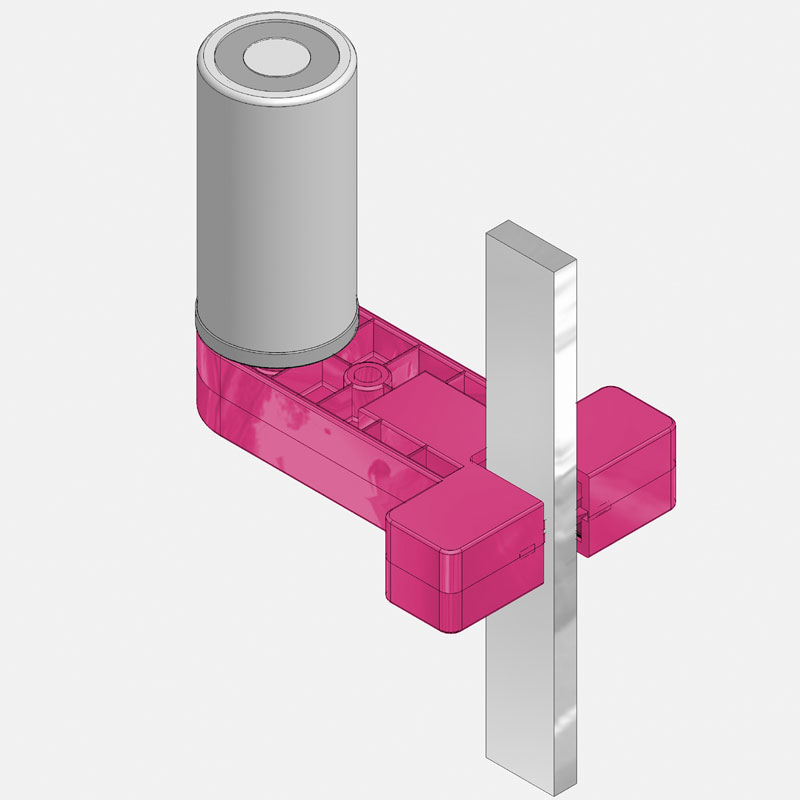

| Elevator brush height 31,5 mm | |
| No. | 290.2039 |
| Elevator brush small height 31,5 mm | |
| No. | 290.2042 |

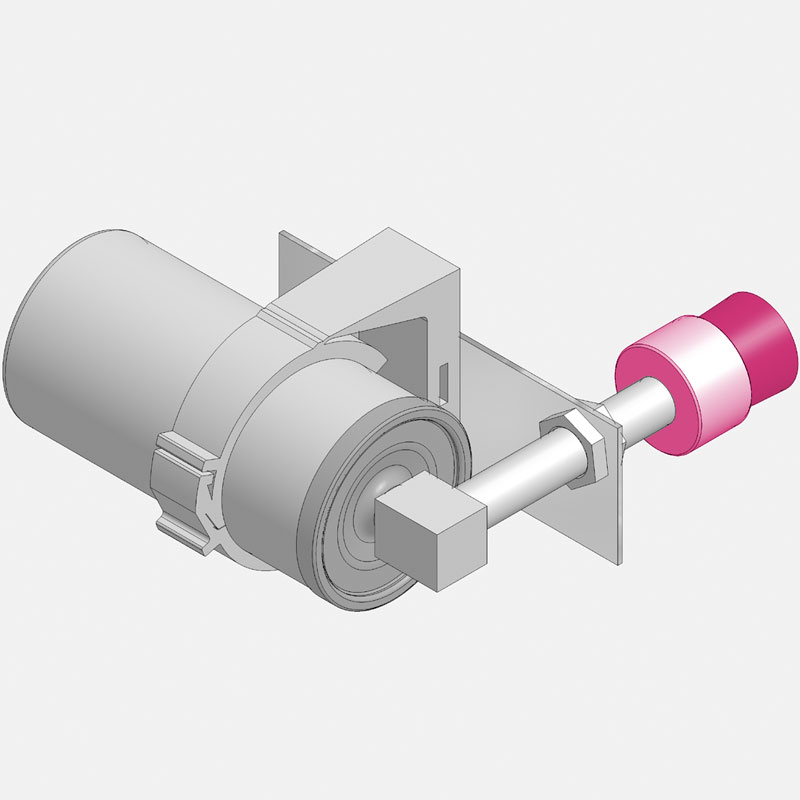

| Round brush | |
| Axl. | d=25x15 mm |
| No. | 290.2041 |

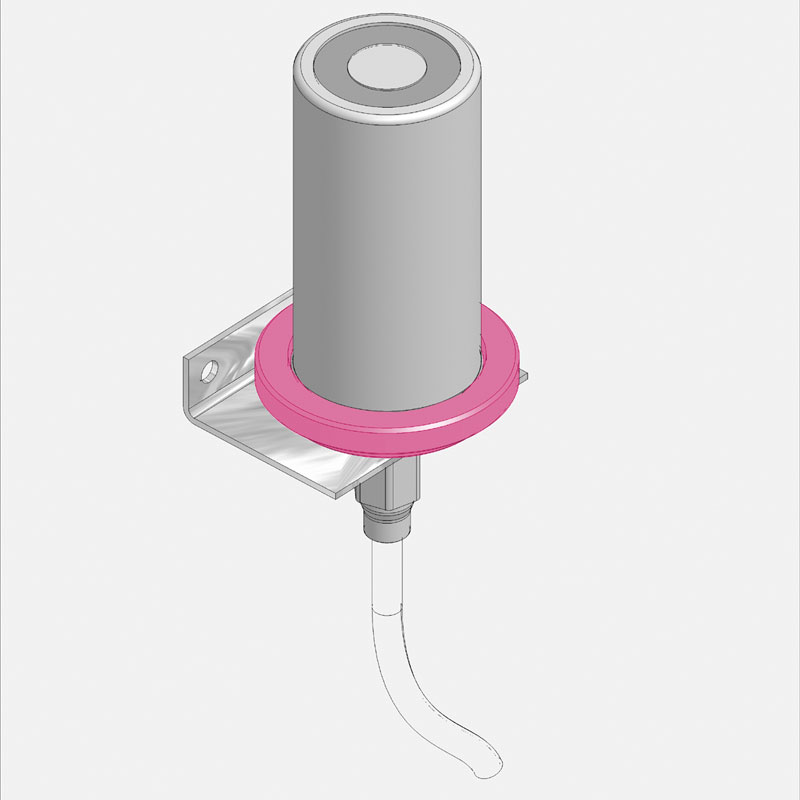

| Mounting support consisting of flange, connection straight R1/4 nut | |
| No. | 290.2080 |

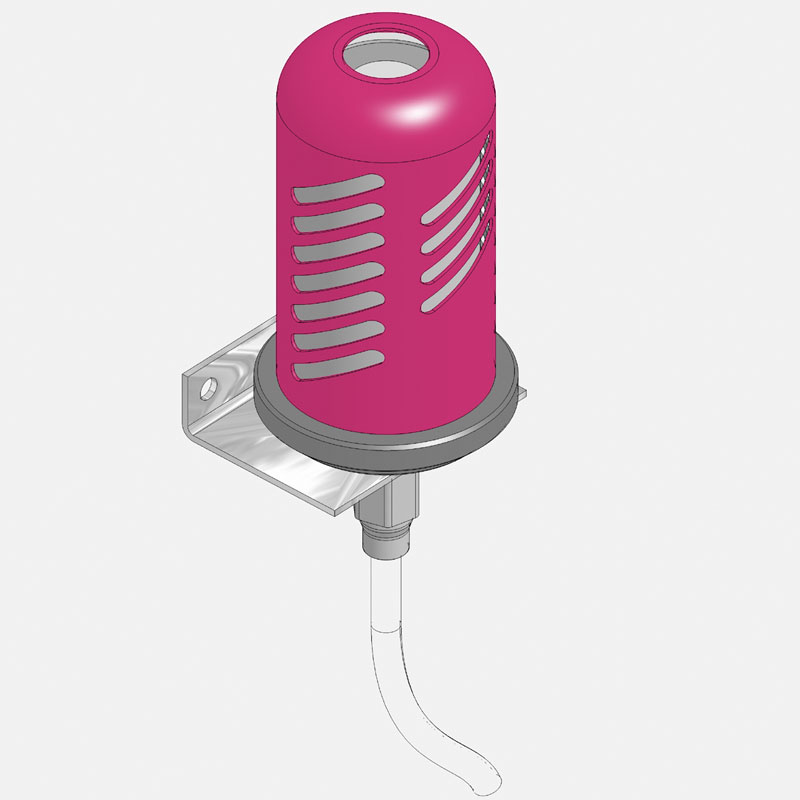

| Protection cover to mounting support | |||
| No. | 290.2081 | For SL 30 ml - SL 125 ml | Varnished steel |
| No. | 290.2085 | For SL 250 ml | For SL 250 ml |

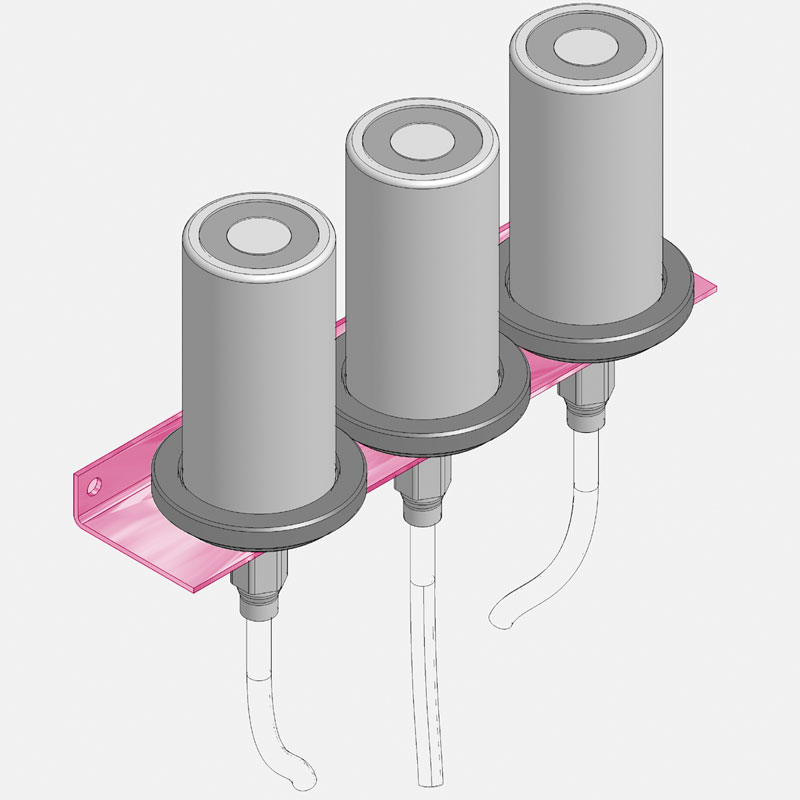

| Mounting bracket to mounting support | |||
| 1-er Länge 75 mm | 3-er Länge 240 mm | 5-er Länge 390 mm | |
| No. | 290.2082 | 290.2083 | 290.2084 |

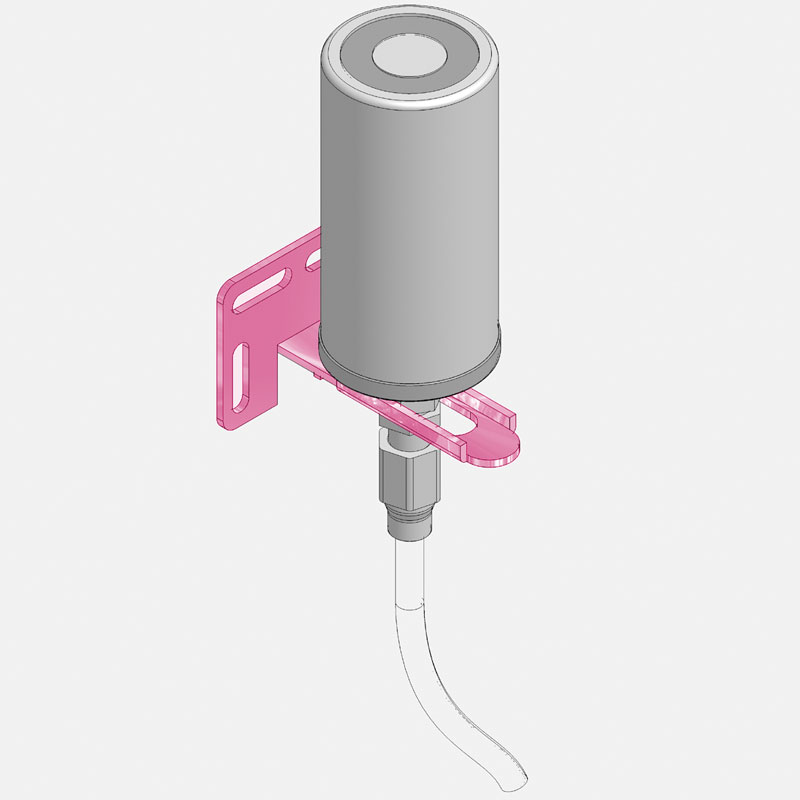

| Bracket, universally adjustable (Steel burnished) | |
| No. | 290.2800 |
| Mounting bracket set for 2point Simalube 15mL | |
| No. | 290.2080-S |
| Grease gun (with valve pipe) | |
| DIN 1283 | |
| No. | 290.3010 |
| Connector nipple (for cleaning and filling of grease lines) | |
| Axl. | R1/4 |
| No. | 290.3011 |
| Refill nipple (for refilling of simalube) | |
| Axl. | R1/4 |
| No. | 290.3012 |
| Connector nipple to grease gun filler for filling lubricator | ||
| D | R1/4 | R3/8 |
| No. | 290.3013 | 290.3014 |

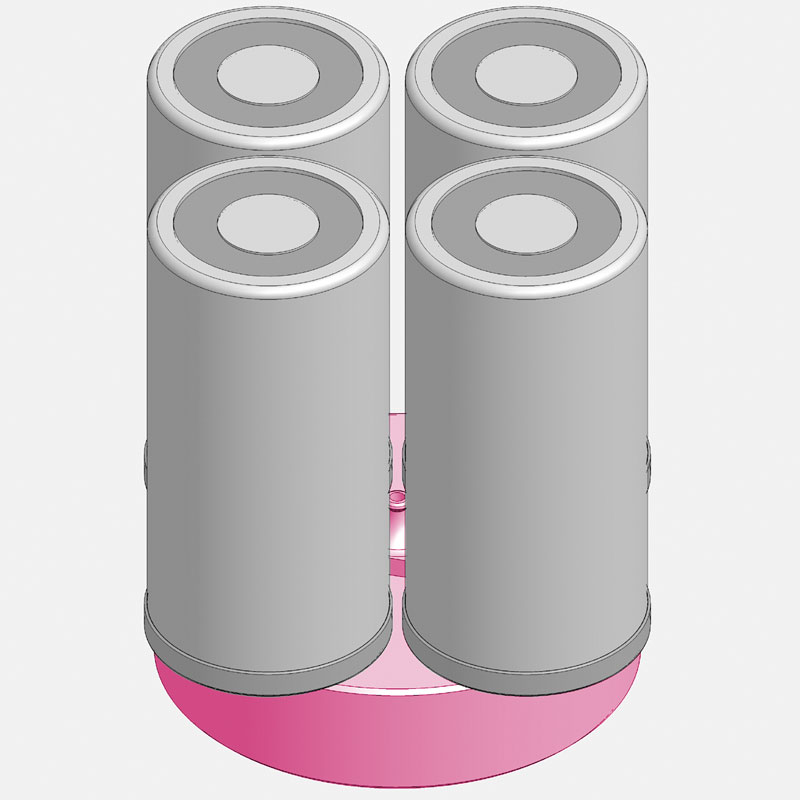

| 4-fold adapter | ||
| A | 1/2" | 1/4" |
| No. | 290.4100 | 290.4101 |
| 2-fold adapter | ||
| A | 1/2" | 1/4" |
| No. | 290.4102 | 290.4103 |
| Cartridge refill (gas generator) | ||||
| A | 30 ml | 60 ml | 125 ml | 250 ml |
| No. | 290.5004 | 290.5006 | 290.5008 | 290.5010 |
| Closing nipple (plastic) | |
| No. | 290.5050 |
| Non-return valve plug | |
| No. | 290.5060 |
| Gasket ring | |
| No. | 290.5080 |
| Grease cartouche (DIN 1284; 400 ml) | ||||||||
| Grease | SL 01 | SL 02 | SL 04 | SL 06 | SL 09 | SL 10 | SL 24 | SL 25 |
| No. | KA 01 | KA 02 | KA 04 | KA 06 | KA 09 | KA 10 | KA 24 | KA 25 |
| Oil bottle 0,5 l | ||
| Chain oil | SL14 | OF14 |
| High temperature chain oil |
SL15 | OF15 |
| Machine oil | SL16 | OF16 |
| Food industry oil |
SL18 | OF18 |
| Biodegradable chain oil |
SL19 | OF19 |
| Bent connection 90°, pivoted | |
| No. | 290.1004 |
| Clamp for simalube 15 | |
| D | 22 |
| Art. | 290.2015 |
